Gnee Steel (Tianjin) Co., Ltd. yog ib qho ntawm cov kws tshaj lij jis g3106 sm490c alloy steel phaj manufacturers thiab lwm tus neeg nyob hauv Suav teb, kuj txhawb kev pabcuam customized. Yog tias koj yuav mus yuav jis g3106 sm490c alloy steel phaj ua nyob rau hauv Suav teb, txais tos kom tau txais cov qauv dawb los ntawm peb lub hoobkas. Cov khoom zoo thiab tus nqi qis yog muaj.

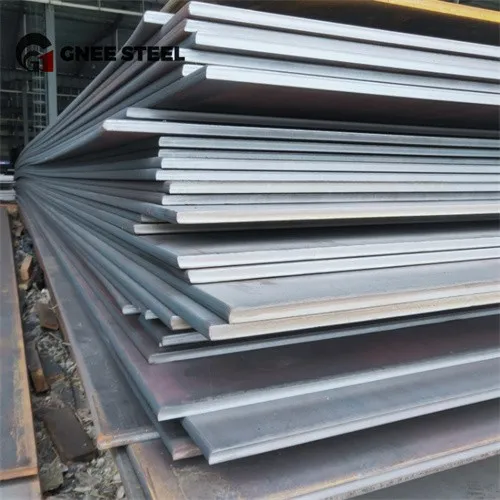

JIS G3106 SM490C Alloy Steel Phaj
SWB 490CAlloy Steel PhajKhoom Description
SM490C hsla structural steel yog siab -lub zog qis- alloy structural steel uas ua raws li cov qauv kev lag luam Japanese JIS G3106. Nws muaj kev ua haujlwm zoo thiab ntau yam kev siv.
Kev ua tau zoo ntawm SM490C hsla steel phaj
High toughness: SM490C siab zog hlau tuaj yeem tswj kev ruaj ntseg thiab kev nyab xeeb hauv kev cuam tshuam lossis kev co.
Los tiv thaiv- qaug zog: SM490C cov hlau tsis tshua muaj hlau muaj qhov ua tau zoo thiab ruaj khov nyob rau hauv kev sib hloov kev ntxhov siab.
Kev ua haujlwm zoo vuam: SM490C yog ib qho yooj yim rau vuam thiab muaj vuam zoo.
Engineering daim ntawv thov teb ntawm SM490C siab zog qis alloy steel
Kev tsim kho : siv rau siab -cov tsev nce siab, txuas hniav thiab lwm yam qauv.
Machinery manufacturing: manufacturing ntau yam khoom siv kho tshuab thiab qhov chaw.
Shipbuilding : siv rau lub nkoj thav duab, decks thiab lwm qhov chaw.
JIS G3106 SM490C Alloy Steel PhajKhoom Paub meej
| SM490C High Strength Steel Phaj Chemical Composition % MAX | ||||||||||||
| C | Si | Mn | P | S | ||||||||
| TH (MM) | Tsawg dua los yog sib npaug li 50 | >50 Tsawg dua los yog sib npaug rau 200 | ||||||||||
| 0.18 | 0.18 | 0.55 | 1.6 | 0.035 | 0.035 | |||||||
| SM490C High Strength Low Alloy Phaj Mechanical Properties MIN | ||||||||||||
| Yield zog (N / MM2) | Tensile zog (N / MM2) | Elongation% | ||||||||||
| TH (MM) | Tsawg dua los yog sib npaug li 16 | >16-40 | >40-75 | >75-100 | >100-160 | >160-200 | Tsawg dua los yog sib npaug li 100 | >100-200 | Tsawg dua los yog sib npaug li 15 | >5-16 | >16-50 | >40 |
| 325 | 315 | 295 | 295 | - | - | 490-610 | 490-610 | Ntau dua lossis sib npaug 22 | Ntau dua lossis sib npaug li 17 | Ntau dua lossis sib npaug li 21 | Ntau dua lossis sib npaug 23 | |

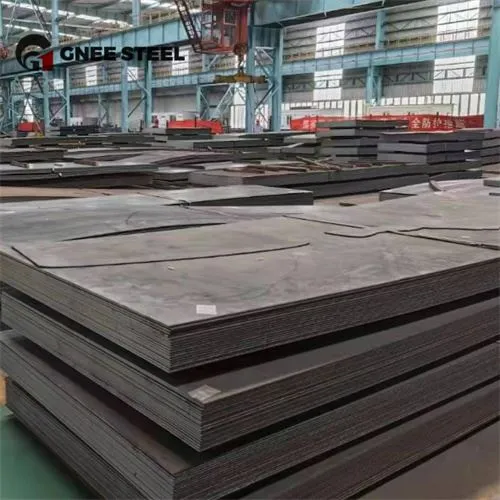

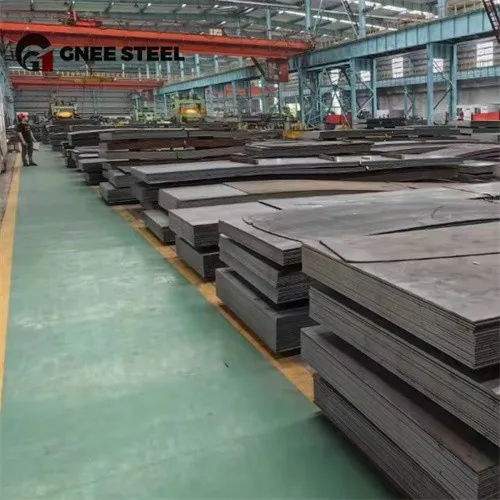

SM490C High Strength Steel SheetCov khoom duab
SWB 490CHigh Strength Tsawg Alloy Phaj Khoom Ua Haujlwm
Yog tias koj muaj kev xav tau ntau ntxiv thiab cov lus nug txog JIS G3106 SM490C alloy steel phaj, thov hu rau peb!
