Q500C siab tensile steel
Q500C Alloy Structural Steel PhajKhoom Description
Q500C alloy steel phaj yog lub zog muaj zog qis-alloy steel phaj nrog zoo toughness thiab yas, uas tuaj yeem nqus tau ntau lub zog thiab tiv thaiv kev puas tsuaj.
Q500C siab zog phaj muaj qee yam kev tiv thaiv corrosion thiab tuaj yeem siv tau ntev hauv ntau qhov chaw, txo kev txij nkawm thiab hloov cov nqi.
Q500C hsla steel ntawv engineering daim ntawv thov
Kev tsim kho thaj chaw: siv rau kev txhawb nqa thiab kev thauj khoom ntawm cov qauv xws li cov tsev siab siab thiab cov chaw ua haujlwm loj. Tsheb teb: Hauv kev tsim cov tsheb xws li tsheb, tsheb ciav hlau, thiab nkoj, txhim kho kev cuam tshuam thiab kev nyab xeeb ntawm tsheb.
Q500C High Tensile SteelCov Khoom Paub meej
Q500C High Strength Low Alloy HSLA Steel Chemical Composition
| STEEL Qib | C% max | Si% max | Mn% max | P% max | S% max | Cu% max | Cr% max | Nia% max | Mo% max | B% max | V% max | Nb% max | % max |
| Q500C | 0.2 | 0.80 | 1.7 | 0.025 | 0.015 | 0.5 | 1.5 | 2 | 0.70 | 0.005 | 0.12 | 0.06 | 0.05 |
Q500C HSLA Low Alloy High Strength Steel Phaj Mechanical Property
| STEEL Qib | Re yield zog Mpa min | Re yield zog Mpa min | elongation% | Zog thiab kub | |||||||
| Min | 0 | -20 | -40 | -60 | |||||||
| t Tsawg dua lossis sib npaug li 50 | 50-100 | 100-150 | t Tsawg dua lossis sib npaug li 50 | 50-100 | 100-150 | J | J | J | J | ||
| Q500C | 500 | 480 | 440 | 590-770 | 590-770 | 540-720 | 17 | 47 | 47 | 34 | 34 |

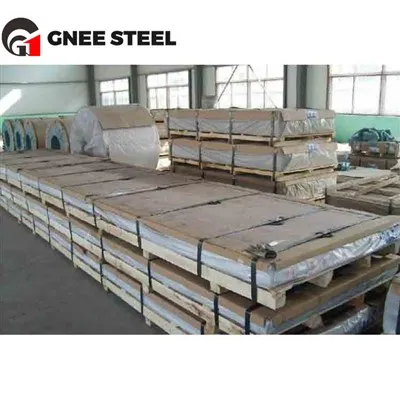

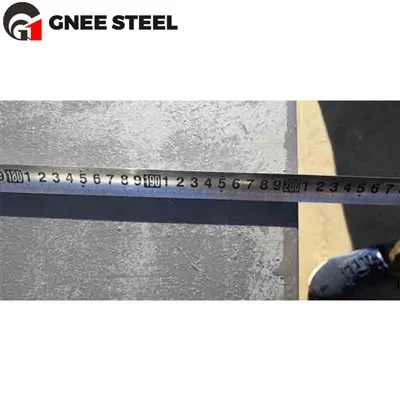

Q500C HSLA Steel PhajCov khoom duab
Q500C Siab zog steel phaj khoom ua
Yog tias koj muaj kev xav tau ntau ntxiv thiab cov lus nug txog Q500C siab tensile steel, thov hu rau peb!
