S460N siab zog qis alloy steel phaj
High Strength Alloy Steel Khoom Description
S460N siab zog steel yog European txheem uas tsis muaj alloy siab zog structural steel phaj, S460N tsis tshua muaj alloy siab zog structural steel phaj yog cov khoom siv siab heev.
Cov yam ntxwv ntawm S460N siab zog steel qauv:
Lub zog siab: S460N siab tensile alloy steel muaj lub zog tensile siab thiab tuaj yeem ua tau raws li cov qauv tsim ntawm ntau yam qauv.
Corrosion kuj: los ntawm kev tsim nyog alloy muaj pes tsawg leeg thiab cov txheej txheem ntau lawm, S460N siab zog phaj muaj corrosion kuj zoo thiab tuaj yeem hloov mus rau ntau qhov chaw hnyav.
High Tensile Steel Khoom Paub meej
S460N HSLA Steel Chemical Composition & Mechanical Property:
| C | Si | Mn | Ni | P | S | Cr | Mo |
| max 0.22 | max 0.65 | 0.95 - 1.8 | max 0.85 | mav 0.035 | max 0.03 | max 0.35 | max 0.13 |
| V | Nb | Ti | |||||
| max 0.22 | max 0.06 | max 0.06 |
| Kub | -20 | -10 | 0 | 20 |
| Notch Impact Test. Min. absorbed zog | 40 | 43 | 47 | 55 |
| Nominal thickness (hli) | rau 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
| ReH - Yam tsawg kawg nkaus tawm lub zog (MPa) | 460 | 440 | 430 | 410 | 400 | 380 | 370 |
| Nominal thickness (hli) | rau 100 | 100 - 200 |
| Rm - Tensile zog (MPa) | 540-720 Nws | 530-710 Nws |
| Nominal thickness (hli) | rau 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 |
| A - Tsawg kawg elongation Lo=5,65 √ Yog li (%) | 17 | 17 | 17 | 17 | 17 |

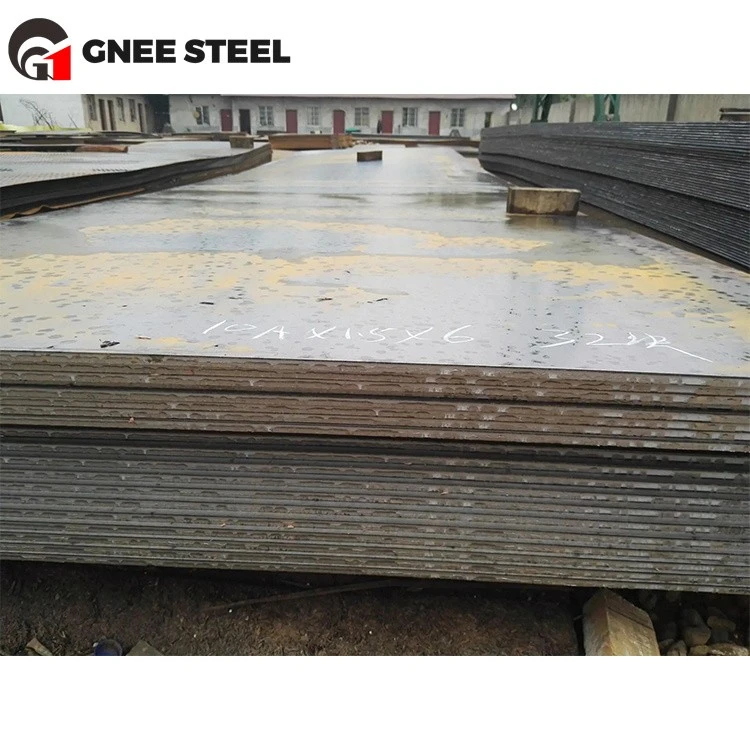

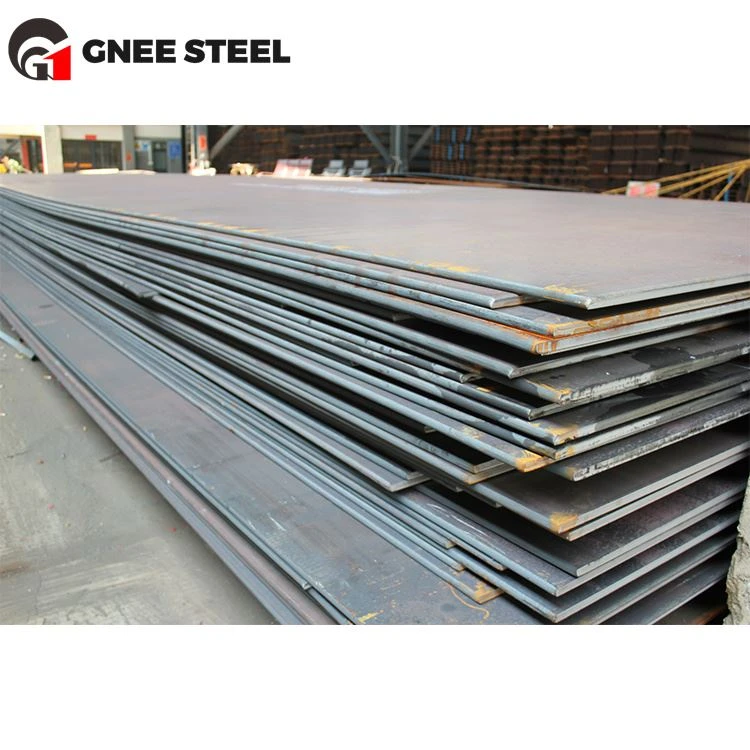

High Strength Steel Khoom Duab
GNEE Group Photo
GNEE Group Exhibition Duab
GNEE pab pawg neeg tuaj xyuas
Yog tias koj muaj kev xav tau ntau ntxiv thiab cov lus nug txog S460N siab zog qis alloy steel phaj, thov hu rau peb!
