Gnee Steel (Tianjin) Co., Ltd. yog ib qho ntawm cov kws tshaj lij a517 / sa517 siab zog steel phaj manufacturers thiab lwm tus neeg nyob hauv Suav teb, kuj txhawb kev pabcuam customized. Yog tias koj yuav mus yuav a517 / sa517 siab zog steel phaj ua nyob rau hauv Suav teb, txais tos kom tau txais cov qauv dawb los ntawm peb lub hoobkas. Cov khoom zoo thiab tus nqi qis yog muaj.

GNEE Group chaw ua haujlwm ib puag ncig

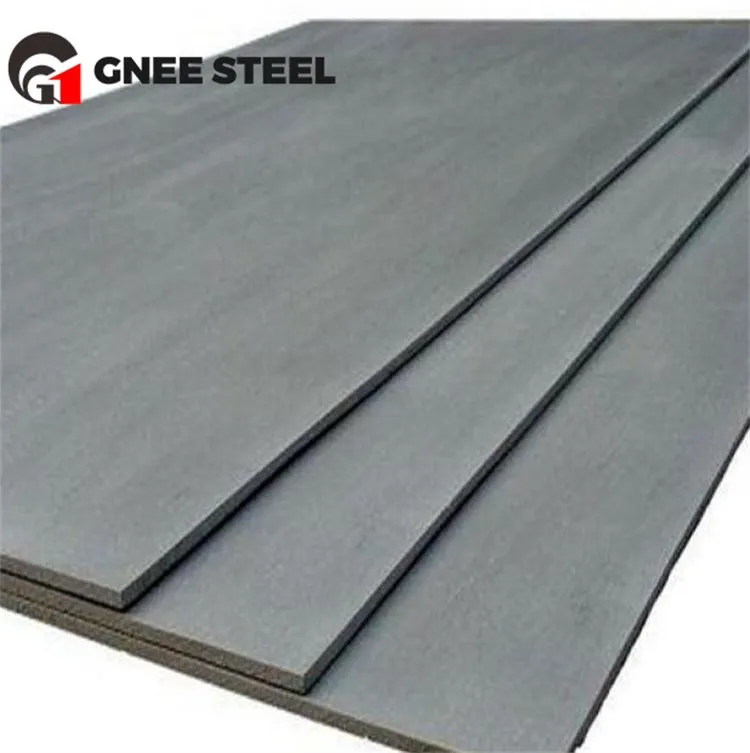

A517 / SA517 High Strength Steel Phaj

High Strength Steel Product Description

ASTM A517 siab yield zog steel phaj tseem hu ua ASME SA517 hsla steel, uas ua raws li American cov qauv. A517 / SA517 siab lub zog qis alloy steel yog lub zog siab, quenched thiab tempered alloy steel phaj siv hauv fusion welded boilers thiab lwm cov hlab ntsha siab.

GNEE tuaj yeem muab rau koj nrog A517GrA siab zog steel phaj, A517GrB siab tensile steel phaj, A517GrH siab zog ntawv hlau, A517GrS siab tensile steel ntawv, A517GrP siab lub zog steel, A517GrF siab zog phaj, A517GrE siab tensile steel ntawv, A517GrE siab tensile steel ntawv,

Siab zog Tsawg Alloy Hsla Steel Khoom Paub meej

A517 qib A High Strength Alloy Steel Chemical Composition:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S
A517 qib A	0.13-0.23	0.34-0.86	0.74-1.20	0.035	0.035
	Cr	Mo	B	Zr
	0.46-0.84	0.15-0.31	0.0025	0.04-0.16

A517 Qib A Alloy Steel Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib A	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib B High Strength Steel Chemical Composition:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S
A517 qib B	0.13-0.23	0.13-0.37	0.64-1.10	0.035	0.035
	Cr	Mo	B	Ti	V
	0.36-0.69	0.12-0.28	0.0005-0.005	0.01-0.05	0.02-0.09

A517 qib B High Strength Steel Phaj Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib B	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib E High Strength Alloy Steel Phaj Chemical Composition:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S
A517 qib E	0.10-0.22	0.08-0.45	0.35-0.78	0.035	0.035
	Cr	Mo	B	Ti	V
	1.34-2.06	0.36-0.64	0.001-0.005	0.005-0.11

A517 qib E High Strength Steel Phaj Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib E	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib F High Strength Alloy Steel Sheet Chemical Composition:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S	Cu
A517 qib F	0.08-0.22	0.13-0.37	0.55-1.10	0.035	0.035	0.12-0.53
	Cr	Mo	B	V	Ni
	0.36-0.69	0.36-0.64	0.0005-0.006	0.02-0.09	0.67-1.03

A517 qib F High Strength Steel Sheet Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib F	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib H Alloy Steel Sheet Chemical Composition:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S	Ni
A517 qib H	0.10-0.23	0.13-0.37	0.87-1.41	0.035	0.035	0.27-0.73
	Cr	Mo	B	V
	0.36-0.69	0.17-0.33	TSI 0.0005	0.02-0.09

A517 qib H Hsla Steel Sheet Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib H	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib P Tsawg Alloy Steel Chemical Composition:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S	Ni
A517 qib P	0.10-0.23	0.18-0.37	0.40-0.78	0.035	0.035	1.15-1.55
	Cr	Mo	B
	0.79-1.26	0.41-0.64	0.001-0.005

A517 qib P Tsawg Alloy Steel Sheet Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib P	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib Q Qes Alloy Steel Sheet Tshuaj Muaj pes tsawg leeg:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S	Ni
A517 qib Q	0.12-0.23	0.13-0.37	0.87-1.41	0.035	0.035	1.15-1.55
	Cr	Mo	V
	0.94-1.56	0.36-0.64	0.02-0.09

A517 qib Q High Strength Plate Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib Q	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

A517 qib S High Strength Sheet Mechanical Property:

Qib	Cov ntsiab lus Max (%)
Qib	C	Si	Mn	P	S	Ti
A517 qib S	0.10-0.22	0.13-0.45	1.02-1.62	0.035	0.035	0.07
	Cb	Mo
	0.07	0.10-0.38

A517 qib S siab zog qis alloy qauv hlau Mechanical Property:

Qib	Thickness	Yield	Tensile	Elongation
A517 qib S	mm	Min Mpa	Mpa	Tsawg%
	6-65	690	795-930	16%
	65-150	620	725-930	14%

High Strength Low Alloy Khoom Duab

high strength low alloy steel

Gnee Group Taw Qhia

GNEE tau tsim nyob rau hauv 2008 thiab muaj kaum rau xyoo ntawm kev ua lag luam. Peb qhov zoo: muab siab - cov khoom zoo thaum txhim kho ib qho - nres tom qab - kev muag khoom; peb muaj ib pab neeg suav nrog thiab muaj kev paub txog; peb muaj peb lub Hoobkas thiab muab cov nqi zoo tshaj plaws; pab neeg tshaj lij muab kev pabcuam zoo rau koj.

Peb cov txheej txheem tseem ua raws li lub hauv paus ntsiab lus ntawm "zoo ua ntej, kev ncaj ncees ua ntej, tus neeg siv khoom ua ntej". Peb zoo siab tos txais cov qhua tuaj noj mov tshiab thiab qub los ntawm txhua qhov chaw ntawm lub neej los tiv tauj peb los tsim kev lag luam kev sib raug zoo yav tom ntej thiab txhim kho ua ke!

GNEE Cov neeg tuaj xyuas

low alloy steel material

GNEE Exhibition Pictures

low alloy steel

GNEE Team Photo

hsla steel

Yog tias koj muaj kev xav tau ntau ntxiv thiab cov lus nug txog A517 / SA517 siab zog steel phaj khoom, thov hu rau peb!
