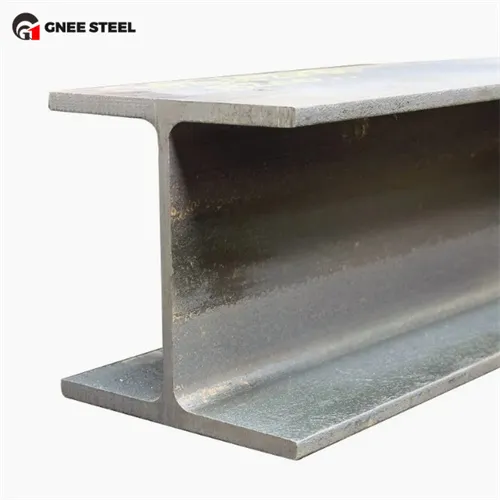

W10X88 W10X100 W10x112 A36 / A572GR50R50 / A992 WUR FlIGGE FLANGE
W10X88, W10X100 thiab W10x1100 thiab W10x112 yog qhov sib txawv ntawm American Standement H-Beam (dav flange h-nqaj). Lawv nyias muaj nyias qhov nyias thiab qhov hnyav thiab qhov hnyav rau ib txhais ko taw, haum rau cov kev xav tau ntawm kev sib txawv.
Cov Lus Qhia Tshwj Xeeb ntawm W10X88 H-Ntu Hlau Beob
Qhov tob (d): txog 10.99 nti (279 mm)
Dav (Flange Didth, Bf): Txog 10.1 nti (256.5 hli)
Web Thickness (Tw): Hais txog 0. 68 ntiv (17.3 hli)
Flange Thickness (TF): Txog 1.035 nti (26.3 hli)
Qhov hnyav ib txhais ko taw: 88 phaus / txhais ko taw (txog 130.7 kg / m)
W10x100 H Steel profile Specifications ntawm Qhov Ntev
Qhov siab: kwv yees li 11.13 nti (283 hli)
Dav: kwv yees li 10.1 nti (256.5 mm)
Web Thickness: kwv yees li 0. 72 nti (18,3 hli)
Flange Thickness: kwv yees li 1.13 ntiv tes (28.7 hli)
Qhov hnyav ib txhais ko taw: 100 lbs / ft (kwv yees li 148.8 kg / m)
Cov Lus Qhia Tshwj Xeeb ntawm W10x112 qauv hlau nqaj
Qhov siab: kwv yees li 11.27 ntiv tes (286 hli)
Dav: kwv yees li 10.23 nti (260 hli)
Web Thickness: kwv yees li {0. 775 nti (19.7 hli)
Flange tuab: kwv yees li 1.22 nti (31 hli)
Qhov hnyav ib txhais ko taw: 112 lbs / ft (kwv yees li 166.6 kg / m)
Cov khoom sib piv
A36 H Profile Steel: Cov Qauv Roj Hlau Hlau Hlau nrog ib qho txiaj ntsig zoo ntawm 36, 000 psi.
A572 Gr50 H steel profile: High-zog qis-alloy txheej txheem hlau nrog ib tug cog lus muaj zog ntawm 50, {5}} psi.
A992 H Nqaj Profile: High-zog tsawg-alloy qauv hlau rau lub zog niaj hnub thiab cov tsev, {} thiab 65, {6}} psi.
Daim Ntawv Thov Qhia Txog H nqaj ntu
W10X88: Tsim nyog rau cov ntawv thov nrog nruab nrab rau cov nroj tsuag hnyav, muaj hnyav muaj nroj tsuag muaj cov nroj tsuag muaj ntau lub tsev ntawm cov vaj tse muaj ntau tus vaj tse, thiab lwm yam.
W10x100: Haum rau cov sijhawm nrog cov khoom muaj zog ntau dua rau cov chaw muaj peev xwm, cov tub ntxhais txhawb nqa cov tsev siab, thiab lwm yam.
W10x112: Tshwj xeeb yog haum rau cov kev thauj ntau dhau los yog cov chaw ua haujlwm ntev, kev ua yeeb yam, thiab lwm yam haujlwm uas xav tau lub zog loj thiab ruaj khov.
