SS400 h zoo li steel beam
SS400 H Steel Profile Khoom Piav Qhia
SS400 me me steel beam yog cov khoom siv carbon steel hauv Japanese JIS tus qauv, uas muaj qee yam kev tiv thaiv corrosion.
SS400 carbon steel h beam feem ntau muaj cov pa roj carbon, silicon, manganese thiab lwm yam ntsiab lus, nrog cov pa roj carbon tsawg thiab kev ua haujlwm zoo. SS400 me me steel h beam muaj vuam kev ua tau zoo thiab kev ua haujlwm txias, uas yooj yim rau kev txiav, khoov thiab vuam.
SS400 h beam qauv engineering daim ntawv thov
Hauv kev tsim kho, nws yog siv los ua steel qauv ncej, kab teeb thiab kab thiab lwm yam khoom.
Hauv kev tsim cov tshuab tsim khoom, nws yog siv los ua ntau yam khoom siv thiab cov khoom siv.
SS400 H Shape Steel Beam Khoom Paub meej
|
Raws li tus qauv: JIS G3192 lossis GB / T11263-2005 |
|||
|
H beam Section loj (mm) |
Qhov hnyav (kg / m) |
||
|
Qhov siab × dav |
Web thickness |
Flange thickness |
|
|
100×100 |
6 |
8 |
16.9 |
|
125×125 |
6.5 |
9 |
23.6 |
|
150×150 |
7 |
10 |
31.1 |
|
175×175 |
7.5 |
11 |
40.4 |
|
200×200 |
8 |
12 |
49.9 |
|
250×250 |
9 |
14 |
71.8 |
|
300×300 |
10 |
15 |
93.0 |
|
300×300 |
15 |
15 |
105.0 |
|
350×350 |
12 |
19 |
134.9 |
|
400×400 |
13 |
21 |
171.7 |
|
148×100 |
6 |
9 |
20.7 |
|
194×150 |
6 |
9 |
29.9 |
|
244×175 |
7 |
11 |
43.6 |
|
294×200 |
8 |
12 |
55.8 |
|
340×250 |
9 |
14 |
78.1 |
|
390×300 |
10 |
16 |
104.6 |
|
440×300 |
11 |
18 |
120.8 |
|
482×300 |
11 |
15 |
110.8 |
|
488×300 |
11 |
18 |
124.9 |
|
582×300 |
12 |
17 |
132.8 |
|
588×300 |
12 |
20 |
147.0 |
|
100×50 |
5 |
7 |
9.3 |
|
125×60 |
6 |
8 |
13.1 |
|
150×75 |
5 |
7 |
14.0 |
|
175×90 |
5 |
8 |
18.0 |
|
198×99 |
4.5 |
7 |
17.8 |
|
200×100 |
5.5 |
8 |
20.9 |
|
248×124 |
5 |
8 |
25.1 |
|
250×125 |
6 |
9 |
29.0 |
|
298×149 |
5.5 |
8 |
32.0 |
|
300×150 |
6.5 |
9 |
36.7 |
|
346×174 |
6 |
9 |
41.2 |
|
350×175 |
7 |
11 |
49.4 |
|
396×199 |
7 |
11 |
56.1 |
|
400×200 |
8 |
13 |
65.4 |
|
446×199 |
8 |
12 |
65.1 |
|
450×200 |
9 |
14 |
74.9 |
|
496×199 |
9 |
14 |
77.9 |
|
500×200 |
10 |
16 |
88.1 |
|
596×199 |
10 |
15 |
92.4 |
|
600×200 |
11 |
17 |
103.4 |
|
700×300 |
13 |
24 |
181.8 |
|
800×300 |
14 |
26 |
206.8 |
|
900×300 |
16 |
28 |
240.1 |

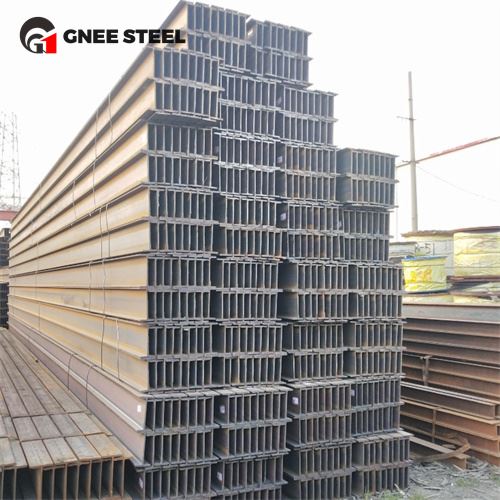

SS400 H BeamCov khoom duab
Yog tias koj muaj kev xav tau ntau ntxiv thiab cov lus nug txog SS400 h zoo li steel beam, thov hu rau peb!
